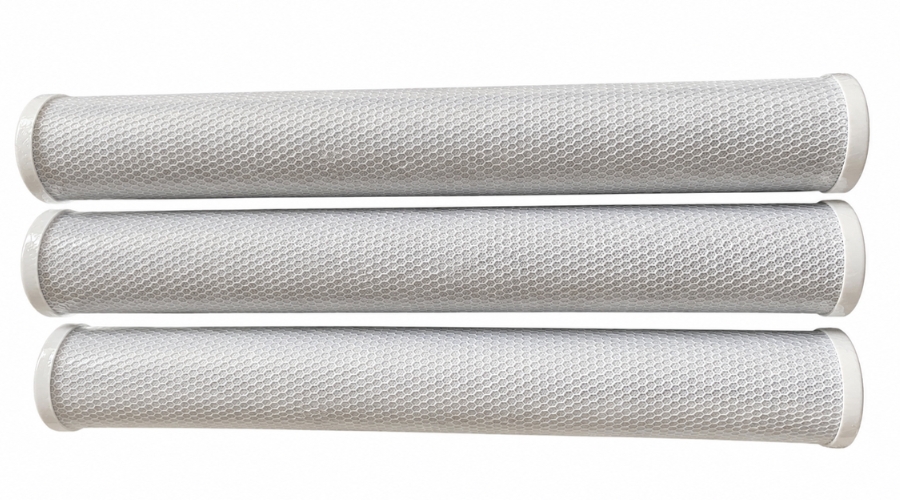

Activated Coal Carbon Cartridge

Activated Coal Carbon Cartridge

Unwanted odors and colors completely ruin the quality of refined liquid products. Activated Coal Carbon Cartridges are deployed specifically to absorb these problematic chemical impurities. At RKay Filtratech, we proudly manufacture, supply, and export these specialized filter cartridges globally. The contaminated liquid flows directly across the porous carbon media. As a result, colorants and organic odors are adsorbed instantly, while the clarified liquid proceeds out of the filter element. This chemical adsorption process is maintained steadily to guarantee superior product refinement.

Activated Coal Carbon Cartridge



Removing microscopic impurities requires highly reactive separation media. Hence, these particular filter cartridges from RKay Filtratech are filled with premium activated granules. Comprehensive physical adaptability is delivered to process operators. As an illustration, the filter elements are supplied in lengths reaching up to 40 inches to provide extended contact time. Eventually, the filter cartridges are manufactured using coconut shell carbon to deliver outstanding adsorption performance.

  • Media Construction: Elements are formed using Activated Carbon Granules and Coconut Shell Carbon Granules.

  • Available Sizes: Outer diameters are offered in 2.5 inch and 4 inch profiles.

  • Element Lengths: Cartridges measure 10 inch, 20 inch, 30 inch, and 40 inch in length.

  • Fitment Types: Connections utilize standard Double Open End fitments.

  • Chemical Industry.

  • Water and Waste Water Industry.

  • Food and Beverages Industry.
