RKay Filtratech (2024), an additional company to R. K. Tech – An Engineering Consultant, founded in 2021 and based in Ahmedabad, Gujarat, brings over 14 years of specialized experience in industrial filtration to serve diverse industries including Oil & Gas, Chemical, Pharmaceutical, Power Plants, Water & Waste Water, Metals & Mining, Cement, Food & Beverages, and more.

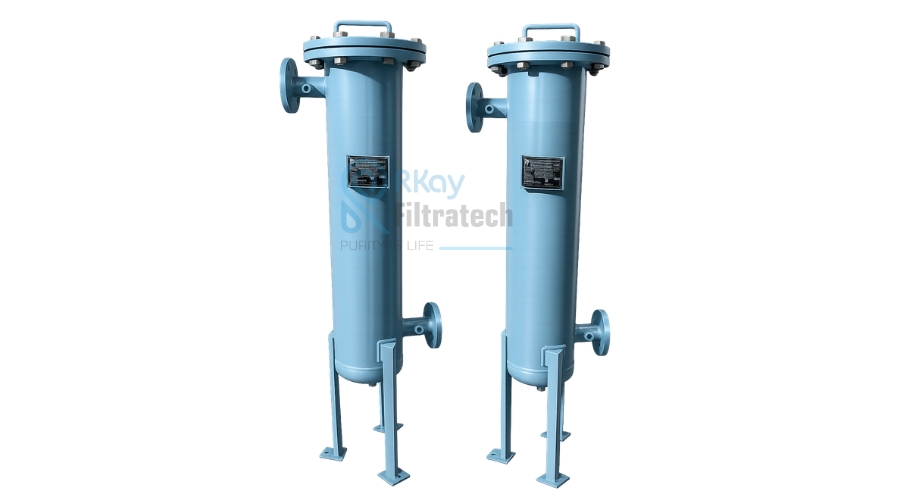

The Liquid Bag Filter System is a separation Filtration System designed to efficiently remove medium suspended solid loads from process fluids. At RKay Filtratech, we proudly manufacture, supply, and export these Filtration Systems to global industrial sectors. During the process, the application fluid is directed into the housing and forced through a designated filter bag. Consequently, solid contaminants are captured inside the bag, and the purified filtrate exits the Filtration System. Furthermore, this entire filtration cycle is maintained by a pressurized mechanism that guarantees precise contaminant separation.
Dependable fluid management is crucial for continuous plant efficiency. Therefore, these specific Filtration Systems from RKay Filtratech are highly recommended for applications requiring coarser to fine filtration capacities. Complete versatility is provided to meet varied operational demands. For example, the Filtration System can be configured with a single filter bag or expanded to hold up to 14 bags within one housing. Ultimately, the Filtration Systems are constructed using durable materials to ensure lasting reliability across diverse industrial environments.
Filtration Rating: Coarser to fine filtration is achieved ranging from 200 microns down to 1 micron.
System Capacity: Filtration Systems are configured to hold from a single bag up to 25 numbers of Size 2 filter bags.
Filter Bag Sizes: Available options include Size 1, Size 2, Size 3, and Size 4 dimensions.
Material of Construction: Housings are built using Mild Steel, Carbon Steel, and IS 2062. Stainless steel grades feature SS 304, SS 316, SS 316 L, and Duplex SS 2205. Additional material choices include Fiber Reinforced Polymer, UPVC, and Polypropylene. Protective coatings are provided with Rubber Lining and PTFE Coating.
End Connections: Available connections feature Flanged ANSI ASME B 16.5, Threaded BSP, Threaded NPT, Tri Clover Clamp, and Union Connection.
Surface Finish: Options include Mirror Polish, Matt Finish along with Acid Pickling and Passivation.
Special Arrangements: Iron particle removal is facilitated by an optional Magnetic Bar arrangement.
Design Standards: Filtration Systems follow ASME Design Code, Good Engineering Practice, and CE Certification standards.
Oil and Petro Chemical Industry.
Paint Industry.
Automobile Industry.
Textile Industry.
Power Plant Industry.
