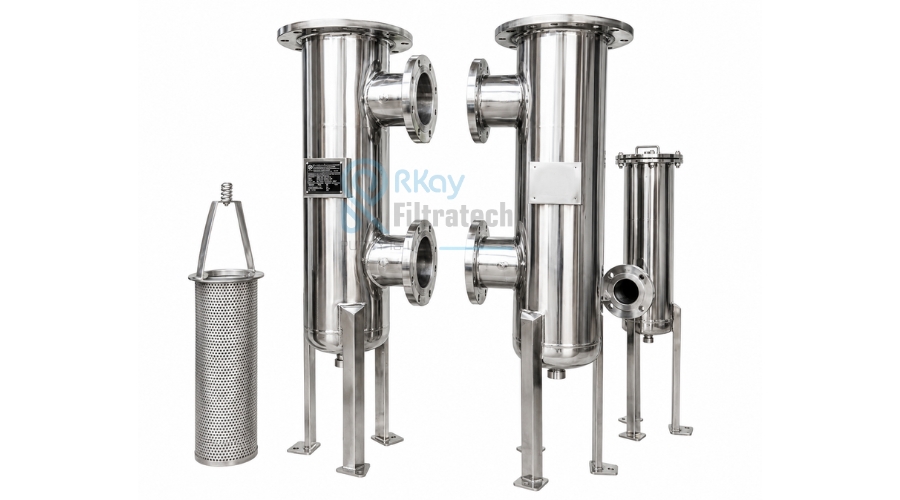

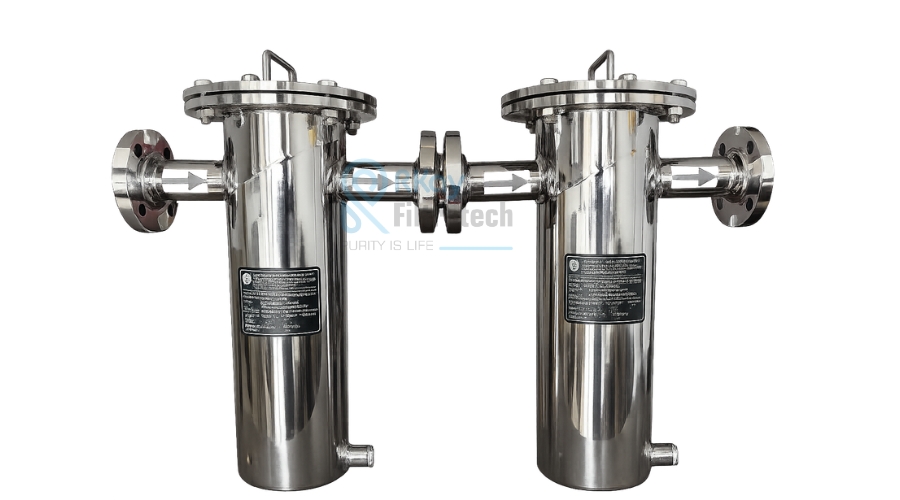

The Basket Filter System is a highly effective separation Filtration System designed specifically for applications containing a considerable amount of suspended solid load. At RKay Filtratech, we proudly manufacture, supply, and export these advanced Filtration Systems to worldwide industrial markets. During operation, process fluid is channeled into the main housing and passed through a reusable filter element. Subsequently, large solid contaminants are securely captured within the basket mesh, while the purified fluid flows out of the Filtration System smoothly. Furthermore, this internal filtration cycle operates under pressure to ensure consistent and continuous separation without unexpected interruptions.
Handling heavy contamination requires robust and reliable solutions. Therefore, these specific Filtration Systems from RKay Filtratech are highly regarded for utilizing reusable filter elements. Complete flexibility is built into the design to accommodate diverse flow requirements. For instance, the Filtration System can be tailored to house a single element or expanded to include up to eight filter elements within one setup. Ultimately, the Filtration Systems are manufactured with premium grade materials to withstand demanding conditions and deliver long lasting performance.
System Capacity: Filtration Systems are constructed to hold from a single element up to 08 numbers of filter elements within a single setup.
Element Designs: Available configurations feature Wire Mesh Wrap Round, Pleated Wire Mesh, Bucket Design, Cross basket or In line connection, Cylinder design for Y and T Type, Conical Design, and Disc Design.
Filtration Rating: Coarse to fine filtration is successfully achieved ranging from 6000 microns down to 5 microns depending upon the element selection.
Material of Construction: Housings are engineered using Mild Steel, Carbon Steel, and IS 2062. Stainless steel options include SS 304, SS 316, SS 316 L, and Duplex SS 2205. Specialized protective layers are available through Rubber Lining, PTFE Coating, and Fiber Reinforced Polymer.
End Connections: Available connections feature Flanged ANSI ASME B 16.5, Threaded BSP, Threaded NPT, Tri Clover Clamp, and Union Connection.
Surface Finish: External and internal finish options include Mirror Polish, Matt Finish alongside Acid Pickling and Passivation and Painting also.
Special Arrangements: Efficient iron particle removal is achieved through an optional Magnetic Bar arrangement.
Design Standards: Filtration Systems are thoroughly verified against ASME Design Code, Good Engineering Practice, and CE Certification standards.
Oil and Gas Industry.
Chemical Industry.
Water and Waste Water Industry.
Metals and Mining Industry.
Pulp and Paper Industry
