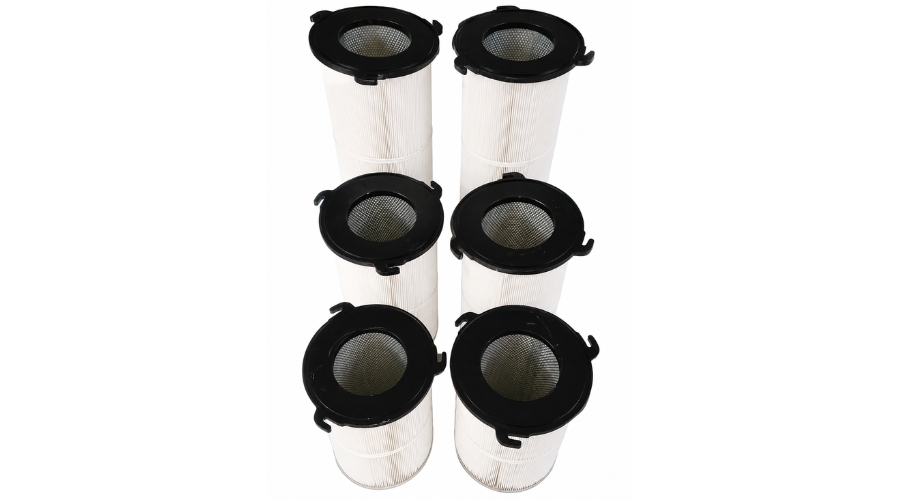

Upgrading existing dust collectors to handle higher airflows requires significantly more media surface area. The Pleated Dust Filter Cartridge is engineered specifically to replace conventional bags and boost total filtration area. At RKay Filtratech, we proudly manufacture, supply, and export these advanced air filter elements to clients worldwide. Dust laden air is pulled through the densely pleated synthetic media. Subsequently, fine particulates are blocked entirely on the outside, permitting ultra clean air to exhaust through the center core. This mechanism operates efficiently to reduce the overall pressure drop across the collector.



Maximizing airflow without expanding the physical machinery saves enormous capital expense. Hence, these specific filter cartridges from RKay Filtratech are highly recommended for facility upgrade projects. Comprehensive installation flexibility is provided to maintenance teams. As an illustration, the filter elements are offered in Tie Bar fitments for dirty side installation or Flat Flange designs for clean side mounting. Furthermore, the filter cartridges are manufactured with antistatic and PTFE coatings to handle difficult environmental conditions effortlessly.

Technical Specifications

• Available Sizes: Outer diameters feature 150 mm, 225 mm, and 325 mm. Lengths span 500 mm, 1000 mm, 1400 mm, and 2000 mm.

• Filtration Area: Surface areas range from 0.96 square meters up to 22.4 square meters.

• Fitment Types: Models include Tie Bar Support, Flat Flange Fitment, and 3/4 Lug Fitment.

• Media Types: Spun Bonded Polyester is utilized with options for PTFE Coating, Antistatic Coating, and PTFE Lamination.

Applications and Industries

• Chemical Industry.

• Food and Beverages Industry.

• Metals and Mining Industry.
