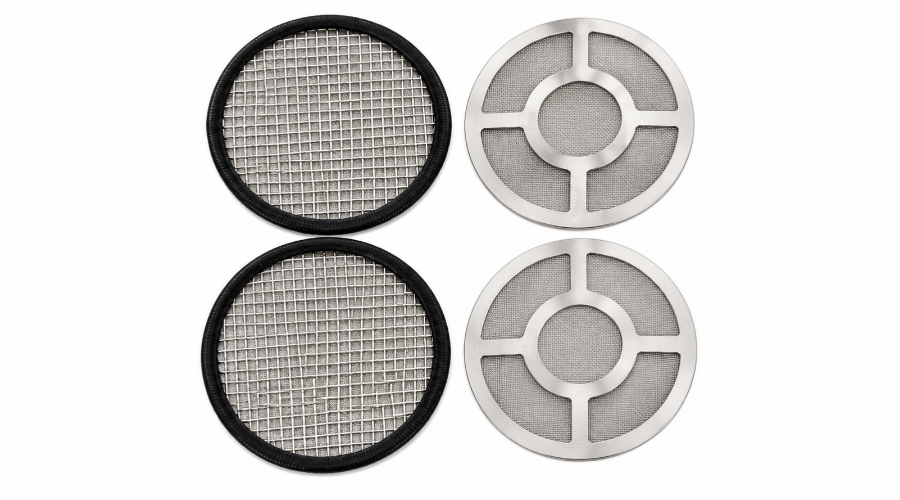

Reliable straining in compact equipment depends on a precisely cut, dimensionally stable separation layer. The Wire Mesh Filter Disc is a circular filter made from woven stainless steel wire mesh, designed to remove unwanted particles from liquids, gases, and process streams. At RKay Filtratech, we proudly manufacture, supply, and export Wire Mesh Filter Discs to customers around the world. As fluid flows through the disc, the uniform mesh openings block solid particles on the surface and let only the clean fluid pass. The result is consistent, repeatable filtration, batch after batch.



Wire mesh discs are valued for their durability and cleanability. The woven construction gives a uniform pore size and a high open area, which supports good flow rates with low pressure drop. Because the mesh is made entirely of metal, the discs withstand high temperatures, pressure, and aggressive process conditions. They can also be backwashed, cleaned, and reused many times, which lowers operating and replacement costs. Our discs are available as single-layer or multi-layer constructions, with the edges bound or framed to prevent fraying and to keep the shape secure inside the housing.

Technical Specifications

• Design Configuration: Circular Wire Mesh Disc, available in single-layer or multi-layer construction with a bound or rimmed edge.

• Filtration Rating: Ranges from coarse 6000 microns down to fine 5 microns.

• Material of Construction: Wire mesh and frames are available in SS 304, SS 316, SS 316 L, and Duplex SS 2205.

• Customization: Diameter, thickness, mesh count, and edge finish can be made to your drawing or sample.

Applications and Industries

• Pharmaceutical Industry

• Food and Beverages Industry

• Chemical Industry
