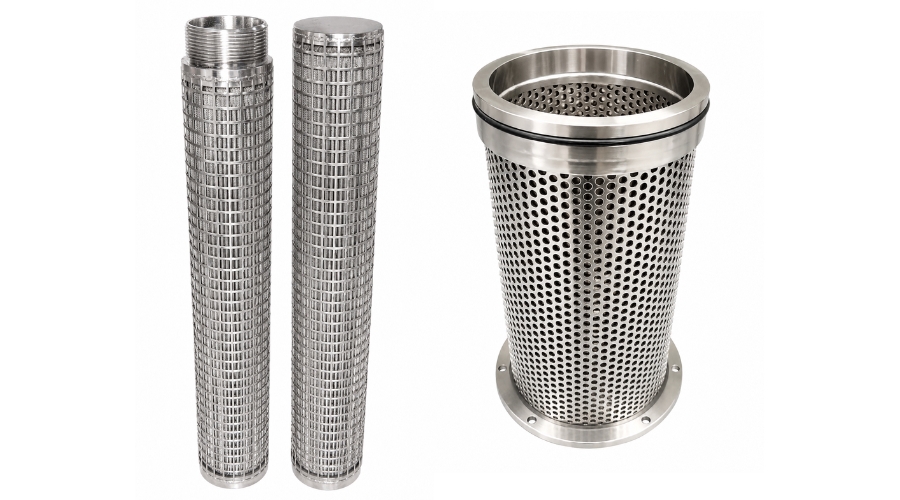

Extreme temperatures and corrosive fluids easily destroy standard polymeric filtration media. Stainless Steel Filter Cartridges are utilized to survive these aggressive processing conditions successfully. At RKay Filtratech, we proudly manufacture, supply, and export these metallic filter elements to heavy industries worldwide. Boiling or corrosive liquid is driven through the metallic mesh or sintered powder layers. Consequently, solids are retained on the rigid metal surface, permitting the purified fluid to pass through the filter cartridge. This filtration cycle operates flawlessly despite severe thermal stress.



Protecting internal components during autoclave cycles is an absolute necessity. Therefore, these rigid filter elements from RKay Filtratech are engineered meticulously to withstand extreme physical demands. Incredible structural variety is provided based on the precise application. For example, the filter cartridges are available in pleated wire mesh, sintered metal powder, or sintered multi layered fiber designs. Ultimately, the filter elements are fabricated from superior metal alloys to guarantee extended operational longevity.

Technical Specifications

• Configurations: Options include Wire Mesh Wrap Round, Wire Mesh Pleated, SS Sintered Metal Powdered, SS Sintered Multi Layered, and SS Sintered Metal Fiber.

• Filtration Rating: Capabilities range from 2000 microns down to 0.1 micron for sintered fibers.

• Material of Construction: Elements are constructed from SS 304, SS 316, SS 316 L, and Duplex SS 2205.

• Fitment Types: Connections feature Double Open End, Single Open End, Threaded Connection, and Two O Ring with Adapter.

Applications and Industries

• Oil and Gas Industry.

• Refinery Industry.

• Petro Chemical Industry.

• Pharmaceutical Industry.
